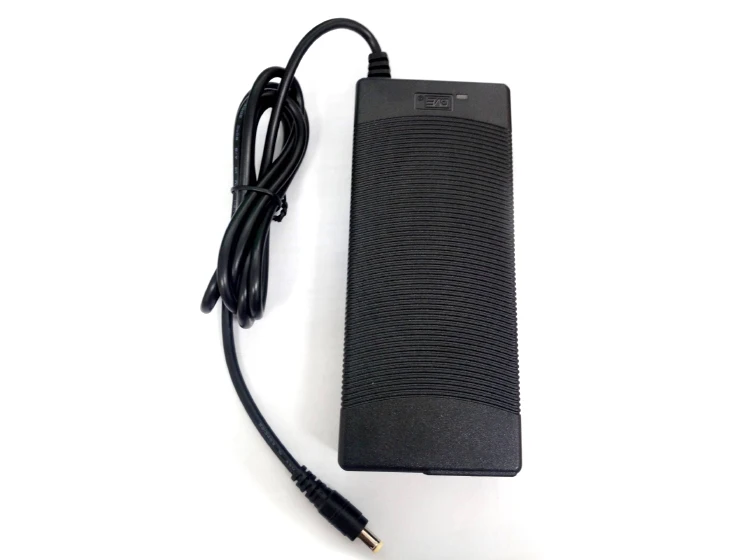

Desktop type switching power supply adapter

FOB Reference Price:Get Latest Price
$17.46 - $18.46 / Pieces | 100 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 5 6 - 1000 >1000
Est. Time(days) 6 25 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
GVE

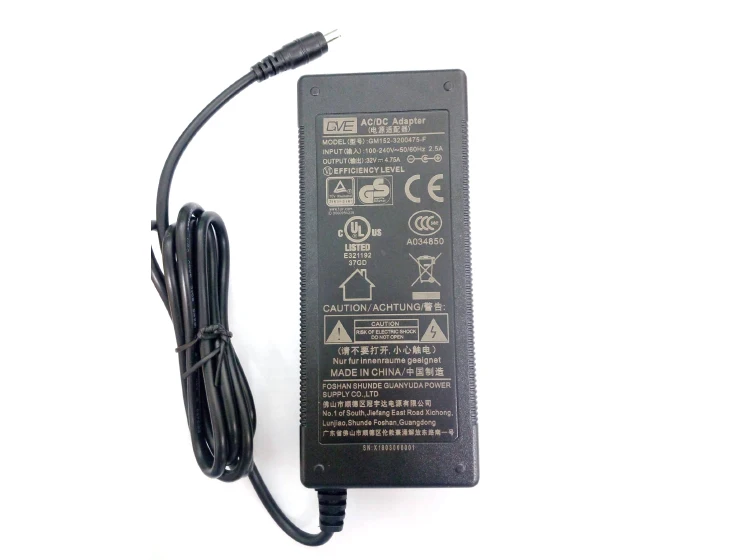

Model Number:
GM152-3200475-F
Output Type:
DC
Connection:
Desktop
Output voltage:
32VDC
Output current:
4.75A
Input characteristics:
100-240Vac 50/60Hz
Certificate:
CE ROHS UL
Color:
Black
Place of origin:
Foshan, Guangdong, China
Warranty:
3 years
DC connector:
5.5*2.1 5.5*2.5.etc (optional)
Protection:
OCP OVP OTP SCP
Efficiency:
89%min
Supply Ability
Supply Ability:
800000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
PE Bag+Clapboard+Outer Carton or according to customer's requirements
Port
Any port in China
Lead Time :
Quantity(Pieces) 1 - 5 6 - 1000 >1000
Est. Time(days) 6 25 To be negotiated

Desktop type switching power supply adapter

Product Description
 Products information

Features: 1, energy efficiency six: meet energy star level VI
2. Complete certification (GS, SAA, BIS, KC, PSE, CUL, UL)
3, with PFC (with PFC function)
1. Input Characteristics.
1.1 Normal Input Voltage:
It is normal for 100~240Vac input AC voltage
1.2 Input Voltage Range:
The Power shall operate form 90-264Vac.
1.3 Rated Input Frequency:
It is normal for 50Hz or 60Hz and single phase.
1.4 AC Input Frequency Range:
The Power shall operate with an input frequency from 47Hz to 63Hz
1.5 No Load Power Consumption:
Maximum non-load power consumption is less than 0.15W at 115Vac/60Hz and 230Vac/50Hz
(Retest it after full load for 15 minutes)
2. Output Characteristics.
2.1 Rated Voltage(Constant voltage mode)
The rated output voltage is specified at 32V
2.2 Voltage Range
The output voltage will be performed 32V±5% when the load is 0A~4.75A steadily
2.3 Current
This Power can work from 0A~4.75A and output voltage is in section 2.2 specified range
2.4 Ripple/Noise
Output Ripple voltage is 360mV peak to peak or less. (100Vac 60Hz/240Vac 50Hz)
2.5 Line Regulation: ±1%
Load Regulation: ±5%
3. Protection
3.1 Over Voltage Protection:
The output shall be protection to latch off at over-voltage condition , maximum value can’t be over 2 times the rated voltage ( 64V), That might be return to normal state by AC reset less than or equal to 5 seconds
3.2 Over Current Protection(more than the 5S):
Over current range: more than the 5.3A, The single over current power should be restored automatically (115Vac/60Hz or 230Vac/50Hz)
3.3 Short Circuit:
The power supply should be restored automatically. When the fault state is removed, it will enter the Normal state
4. Environment (temperature and humidity)
4.1: Operating temperature 0°C~40°C
4.2: Operating humidity 20%~ 90% ( Relative humidity).
4.3: Storage temperature -20°C ~ 80°C.
4.4: Storage humidity 0%~ 95%. (Relative humidity).

5. Electrostatic Interference (EMI)
The power supply shall complied to:
FCC part 15 : Class B for radiated and conducted emissions.
EN , Class B for radiated and conducted emissions.
GB9254-2008, GB17625.1-2012
6. Mechanical Specification:
  6.1: Net Weight (g) : 487 g/pcs
6.2: Outline Dimension: 161*68.4*32.5 mm
       6.3: Outline Color:
6.4: DC Cable: 16AWG 2468 L1000mm±15mm Tuning fork (tuning fork)
In+/out-,SR7.8*6.8(total length)

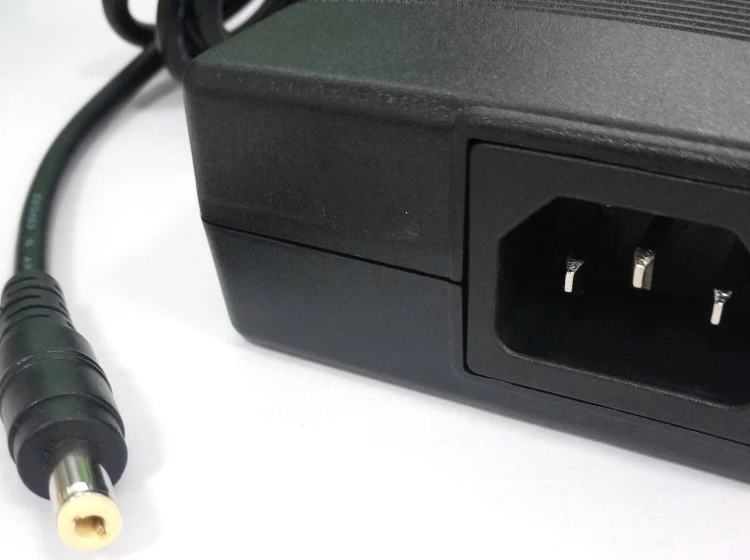

      6.5: DC Connector Dimension:
         LD = 10.0 mm
         OD= 5.5 mm
         ID= 2.5 mm
6.6: AC Cable: C8 input pedestal.Match 2×0.75mm2 L1200mm±15mm 2PIN
(VDE, total length, C8)
