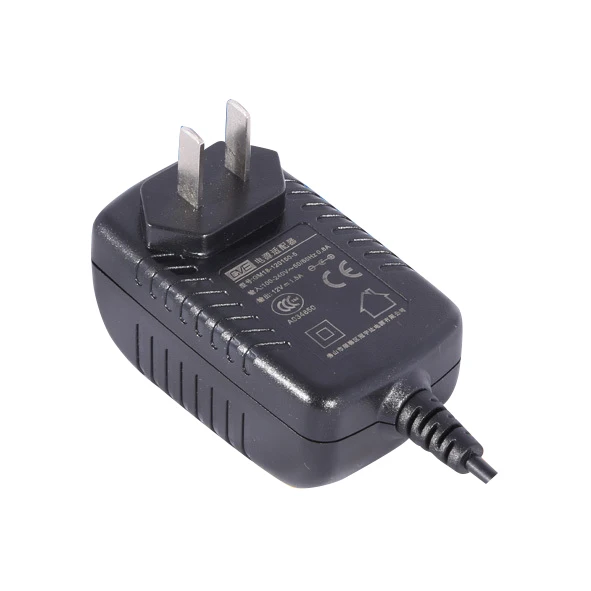

RoHS automatic battery wall charger 18v 1a

FOB Reference Price:Get Latest Price
$3.00 - $5.00 / Pieces | 100 Piece/Pieces (Min. Order)
Color:
Socket Standard:
EU/AU/UK/US
Lead Time:
Quantity(Pieces) 1 - 5 6 - 1000 >1000
Est. Time(days) 7 25 Negotiable
Report Suspicious Activity
Overview
Quick Details
Brand Name:
GVE, GVE
Model Number:
GM25-180100
Use:
Other
Type:
Electric, Electric
Place of Origin:
Guangdong, China
Key word:
wall charger
Model No.:
GM25-180100
Color:
black/white
Max power:
19w
Input voltage range:
AC100-240v/50-60hz
MOQ:
100PCS
Warranty:
3 years
Place of origin:
Guangdong, China
Supply Ability
Supply Ability:
800000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
PE Bag+Clapboard+Outer Carton or according to customer's requirements
Port
any port in China
Lead Time :
Quantity(Pieces) 1 - 5 6 - 1000 >1000
Est. Time(days) 7 25 To be negotiated
Video Description

RoHS automatic battery wall charger 18v 1a

Product Description


Products information

Input Voltage

100 ~ 240 VAC

Input Frequency

50 ~ 60Hz ( Limits : 47 ~ 63 Hz )

Output current

1A

Output Voltage

18V

Output Power Range

25W max

Ripple

1% peak to peak maximum

Over Voltage Protection

Yes.Protected by Zener diode

Over Current Protection

Yes. Auto - recovery.

Standard Series : Rated output current > 110% for primary-referenced direct drive

(Constant current series : Rated output current 80~200% for secindary-referenced direct drive)

Short Circuit Protection

Yes. Hiccup mode; Auto-recovercy

Operating Temperature

–20 ℃ ~ +30 ℃

Storage Temperature

-20℃~ +85℃

Relative Humidity

5% to 95% non-condensing

Setup up / Hold up / Rise time

Typical : 3000mS / 16mS / 50mS at full load

Line Regulation

±1% maximum for any input voltage change between input voltage range

Load Regulation

Typical + 5% variations from minimum to maximum output current

Insulation Resistance

50Mohm minimum from input to ground

Inrush Current

30 AMPS @ 240 VAC at 25 ℃ cold start

Withstand Voltage

4242VDC from input to output

Mean Time between Failure

100,000 hours minimum at full load at 25℃ ambient

Safety Requirements

CE, FCC, UL,CUL,PSE,GS,CCC,KC

Warranty

3 Years
Application

As a leading power manufacturer, we provide various power products including power adapter, ac dc adapter, charger, power supply, etc. Our power products are widely used in appliances below.

1. Security: CCTV camera

2. Lighting: LED light, LED strip

3. A&V: Hifi speaker, DVD player

4. Printer: 3D printer

5. Financial equipment: POS

6. Pump: Aquarium, RO.

7. Network switches: POE

8. Consumer electronics: Laptop



Please note that this type of power adapters can be used in LED, CCTV camera and POS printer. Other applications are supported by desktop adapters. You can click the first title to choose adapters you need.



Our Services

1. Reply your enquiry in 24 working hours (8: 00am ~5: 30pm, Monday to Saturday (UTC+8).

2. Experienced staffs answer all your questions in professional and fluent English.

3. OEM is welcome. We have strong R&D team here to customize products you need.

4. Feasible solutions can be provided to our customer by well-trained and professional engineers and staffs.

5. Good after-sale service offered, please get back if you have any question.





More Products

Company Information

Our Mission: To provide customers with 101% assured good power!

¤ 25,000m² factory rolls out 2500,000 units every month

¤ Own mold department with 900 workers

¤ R&D specialists average 22 years industry expertise

¤ Each power supply are strictly license certification standard production

¤ Product repair rate is less than 0.2‰

¤ 18 series and over 1,000 items for your selection

¤ Orders shipped in as fast as 15 days; NO MOQ
